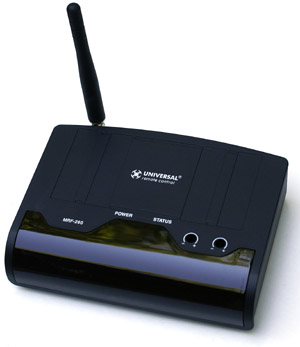

MRF-260
The MRF-260 is a compact, fully addressable RF base station compatible with URC’s many Narrow Band-equipped remote controls. The base station features an integrated Narrow Band receiver and antenna, two fixed line outputs for IR emitters, and two adjustable, or variable, line outputs. Each adjustable output can be matched to the IR input on any component that a standard IR repeater can operate.
Radio Frequency (RF) Range
The base station extends the reception range for flawless connectivity from compatible remotes up to 100 feet away through walls, floors and doors, indoors or outdoors. It eliminates the line-of-sight requirement, and can even be concealed in cabinets for true “Barrier Free” control.
The Narrow Band capability offers significant installation advantages. In addition to improving devices’ range and reliability, it improves spurious adjacent signal rejection, ignoring unneeded signals. A bright red LED status light flickers to alert users to the presence of RF interference.
15 Different Locations
The MRF-260 can be programmed to operate equipment at up to 15 locations, like a den or a bedroom, anywhere in a house by installing an MRF-260 at each location. It also works with such devices as URC’s breakthrough MSC-400 Master System Controller, which seamlessly harnesses the power of sophisticated home entertainment systems, providing options and advantages not otherwise available.
Miscellaneous
Four shallow grooves on the top panel of the MRF-260 accept standard Brother P-Touch® self-adhesive labels, allowing installers to easily identify each component connected to the corresponding outputs. The base station is designed for use with standard 3.5 mm plugs.
Features and Benefits
- RF Addressible
- IR Routing
- Two (2) Fixed IR Output
- Two (2) Variable IR Outputs
- Four (4) IR emitters with 3 meter cable
- Compatible remotes: Click Here
- Size: 5" x 3.5" x 1.2" (w/o antenna)
- Weight: 1.3lbs
- RF Freq: 418 MHz Narrow Band RF
- Range: RF - Up to 100 feet
IR (line of sight) - Up to 60 feet with the front IR blaster ON. Approximate range will vary depending upon operational and environmental conditions - IR Flasher: 3.5mm Mono Mini Jack
- Power Supply: 9V DC (AC Adapter included)
- Warranty: 1 year parts & labor when purchased from an authorized dealer
